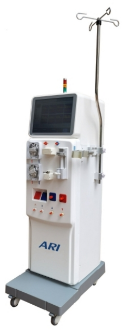

Hemodialysis Machine

Experience advanced renal care with this state-of-the-art hemodialysis machine, engineered for both efficiency and patient safety. Featuring a user-friendly touchscreen interface, comprehensive safety alarms, and an integrated IV pole, this machine streamlines operation for healthcare professionals. Its compact design fits seamlessly into hospital rooms or dialysis centers, while the sleek white and silver finish complements any clinical environment. Optional accessories and various sizes are available to cater to diverse patient and facility needs. Ensure reliable and comfortable treatment with a machine built for performance and peace of mind.

Dialysate

Dialysate temperature: Preset range 33.0℃~39.0℃, ±0.1℃

Dialysate flow: Less than 800ml/min (Adjustable)

Concentration of dialysate: 12.1 mS/cm~16.0 mS/cm, ±0.1 mS/cm

Dialysate ratio: Various proportions

UF (dehydration): 0 ml/h~4000 ml/h

Resolution: 1ml

Precision: ±1%

Heparin Pump

Syringe size: 20, 30, 50ml

Flow range: 0 ml/h~10 ml/h

First dose range: 1.0~20.0ml

Resolution: 0.1ml

Precision: ±0.2 ml or ±5% of the reading

Extracorporeal Circulation

Venous pressure: -180 mmHg ~ +600 mmHg, ±10 mmHg

Arterial pressure: -380 mmHg ~ +400 mmHg, ±10 mmHg

TMP pressure: -180 mmHg ~ +600 mmHg, ±20 mmHg

Blood pump, assistant pump flow range: 30 ml/min ~ 600 ml/min (Inner diameter Ф8mm)

Resolution: 1ml

Precision: ±10ml/min or 10% of the reading

Blood leak detection: Photo chromic detecting

Bubble detection: Double protection

Disinfection and Cleaning Procedures

Chemical decalcification: Room temperature/85℃, flow: 300 ~ 800ml/min (adjustable)

Chemical disinfection: Room temperature, flow: 300 ~ 800ml/min (adjustable)

Heat disinfection: 85℃, flow: 300 ~ 800ml/min (adjustable)

Intelligent disinfection setting from Monday to Sunday makes disinfection safer and more reliable.

Technology Data

Weight: 66kg

Input power: 1500w

Standby battery: 30 minutes

Water inlet pressure: 0.15 MPa ~ 0.6 MPa

Water inlet temperature: 5℃ ~ 30℃

Working environment: Temperature 10℃ ~ 35℃ at relative humidity of less than 70%
